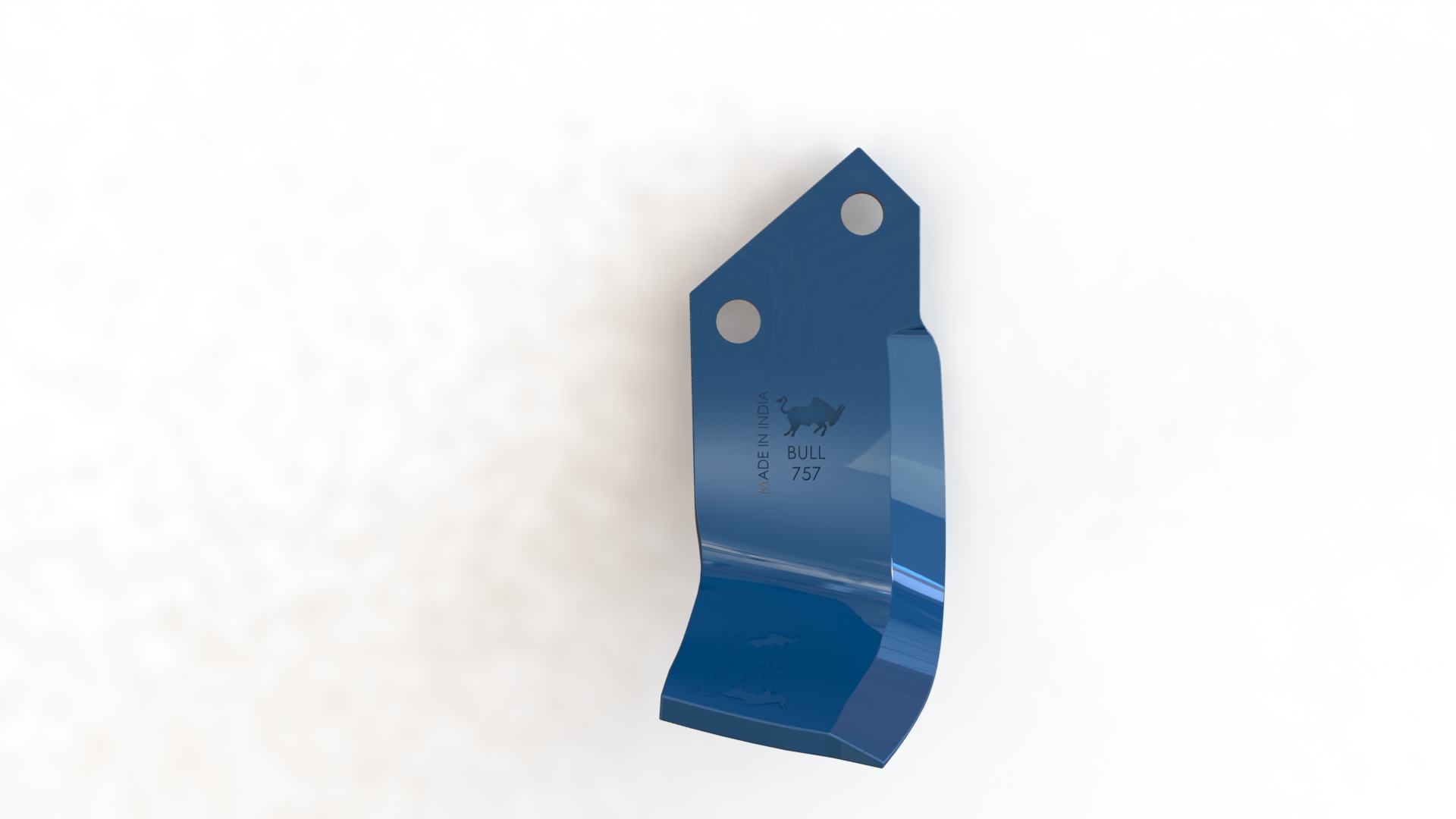

Export Plus L Type
Export Plus L Type
L TYPE
- HRC 46–48
- 28/30 MCB5 Boron Steel Material
- Hardness ensures flexibility and the ability to absorb impacts without breaking.
Technical Specifications & Dimension Chart
| SI.No | Description | Model | Type | Thickness(mm) | Hole Size (mm) | Center Distance (mm) | Weight (kg) |
| 1 | RTB | Export Plus [EZ] | L Type | 7 | 14.50mm | 56.5mm | 1.030Kg |
| 2 | RTB | Export Plus [EZ] | L Type | 8 | 14.50mm | 56.5mm | 1.180Kg |
| 3 | RTB | Export Plus [EZ] | L Type | 9 | 14.50mm | 56.5mm | 1.300kg |
| 4 | RTB | Export Plus [EZ] | L Type | 10 | 14.50mm | 56.5mm | 1.450Kg |
