HAYMAKING • BALER

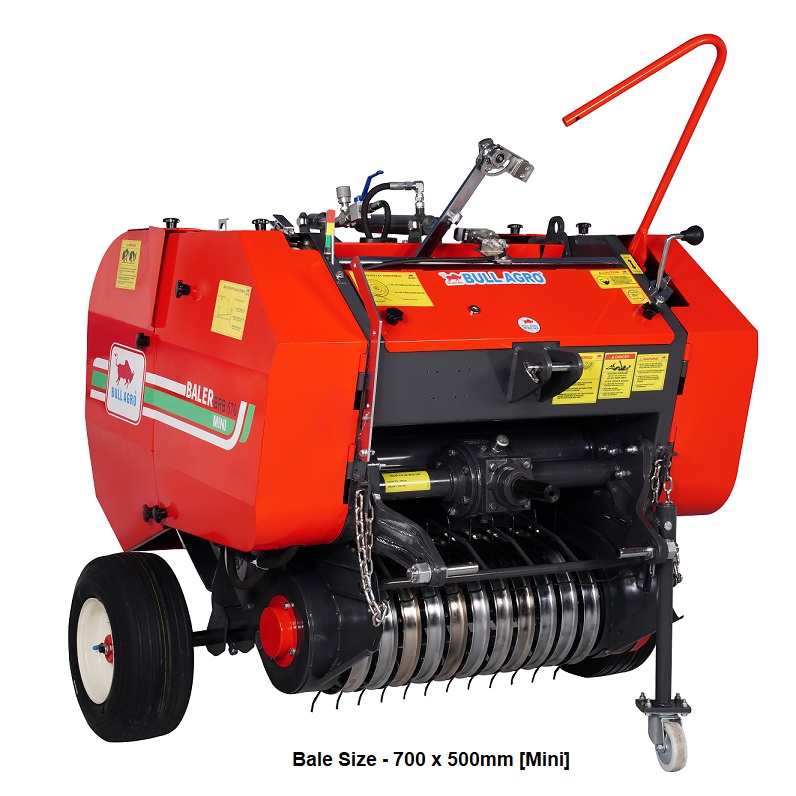

Mini Baler BRB-570
Mini Baler BRB-570
Cost effective. Compact. Covenient. With a Proven and Simple Design and Trouble-Free Operation in Harsh Conditions, this machine delivers Compact Bales using its Four-Tine Bar Pick-Up System, perfectly meeting the unique demands of smaller, versati
Salient Features & Performance Attributes
- Compact Bale Size
- Proven and Simple Design
- Bale Density Control Lever
- Protective Safety Covers
- Four-Tine Bar Pick-Up System
- Standard Central Chain Lubrication
- Trouble-Free Operation in Harsh Conditions
- Versatile for European Farming Needs
Technical Specifications & Dimension Chart
| S.No | TECHNICAL SPECIFICATIONS | DETAILS |
| 1 | Type | Tractor PTO Operated |
| 2 | Dimension in mm (L × W × H) | 1450 × 1250 × 1160 |
| 3 | Bale Size in mm | 700 × 500 |
| 4 | Bale Weight in Kg | 14–17 kg |
| 5 | Binding Tie | Scale Winding |
| 6 | Pickup Width in mm | 850 |
| 7 | Roller Type | Powder Coated Hollow Round Section (Sheet Type) With Six Protrusion Equally Formed on Periphery |
| 8 | No. Of Roller | 10 |
| 9 | Roller Chain | 5/8" Heavy Duty |
| 10 | Chain Sprocket | Forged Alloy Steel Hardened Sprockets With Trivalent Coating |
| 11 | Greasing Point | Top Roller Both Side Greasing Point |
| 12 | No. Of Tine Bars | 4 |
| 13 | No. Of Tine Teeth | 24 |
| 14 | Bale Ejection | Manual Over Ride |
| 15 | Efficiency | 80–120 Bales/hr |
| 16 | Tractor HP | Min 25 Hp (Dual Clutch) |
| 17 | PTO Input Speed | 540 Rpm |
| 18 | Weight | 425 Kg |
| 19 | Tyre Size | 16 × 6.50 – 8 Ply |
| 20 | Drive Protection | Shear Bolt And Slip Clutch |
| 21 | Hitching | Cat-2 Three Point Linkage |
| 22 | Bale Density | Adjustable |
| 23 | Optional Features | ATR (Auto Twine Release) |
