HAYMAKING • BALER

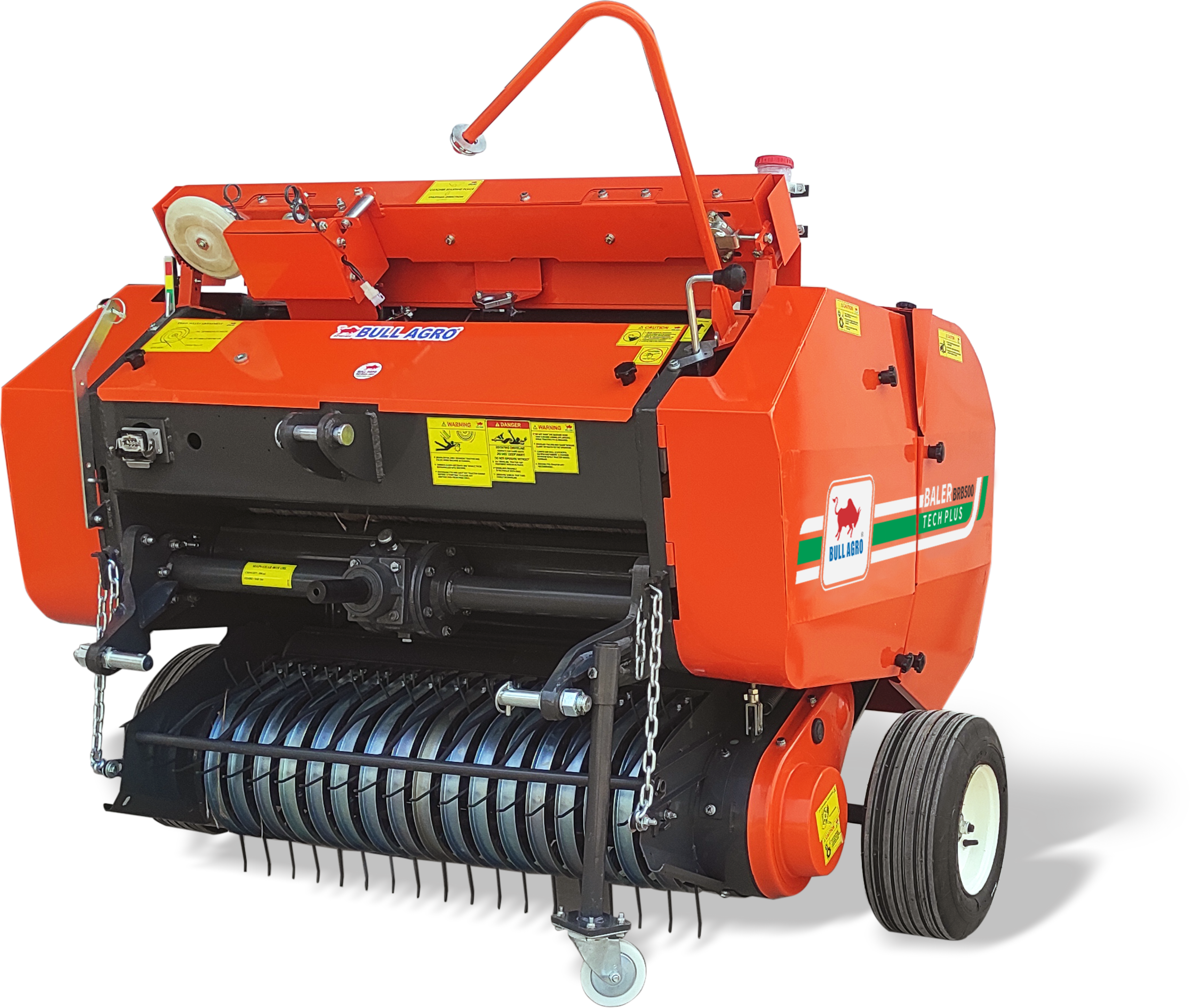

Round Baler BRB - 500
Round Baler BRB - 500
Increase revenues after harvest by cleaning the fields efficiently and producing beautiful round bales safely and quickly with the all-new BULL AGRO BALER. As one of the country's pioneers in quality farm equipment manufacturing, BULL AGRO is now int
Salient Features & Performance Attributes
- Automatic Twine Feeding System
- Automatic Centralised Lubrications System With Cleaning Brush
- Heavy Duty Chain Drive
- Easy serviceable Heavy Duty 5.5 Module Gear Box
- Automatic Door Opening
- 5 Tyne Bar with Cam Track Bearing and Heat Treated Cam Track Plate
- Pick-up Disc Bearing gives more life and less maintenance
Technical Specifications & Dimension Chart
| S.No | MODEL | BRB 500-ECO | BRB 500-TECH PLUS | BRB 500-PREMIUM |
| 1 | Type | Tractor PTO Operated | ||
| 2 | Dimensions in MM (L × W × H) | 1750 × 1250 × 1160 | ||
| 3 | Bale Size in MM | 1050 × 500 | ||
| 4 | Bale Weight in Kg | 18–24 Kg | ||
| 5 | Binding tie | Scale winding | Automatic scale less winding | |
| 6 | Pick up Width in MM | 1200 | ||
| 7 | Roller type | Powder coated 2mm hollow round pipe section with six protrusion equally | Powder coated hollow round section (Sheet type) with six protrusion equally formed on periphery | |
| 8 | Roller chain | 5/8" Heavy Duty | ||
| 9 | Chain sprocket | Forged alloy steel hardened sprockets with trivalent zinc plating | ||
| 10 | RH Side Bearings | Direct greasing point | Centralized greasing point is provided | |
| 11 | No. of tyne bars | 4 | 5 | 4 |
| 12 | No. of tyne teeth | 36 | 45 | 36 |
| 13 | Bale ejection | Semi automatic bale ejection with manual override | Fully automatic with manual override and auto door opening (merged across Tech Plus and Premium) | |
| 14 | Tractor HP | Min. 35 HP | ||
| 15 | PTO input speed | 540 RPM | ||
| 16 | Weight | 560 Kg | ||
| 17 | Tyre size | 16 × 6.50 – 8 PLY | ||
| 19 | Drive protection | Shear bolt and slip clutch | ||
| 20 | Other features | 1. Gravity lubrication for chain | 1. Pick-up Disc Bearing type tine bar, 2. Heavy duty Bevel 5.5 Module, 3. Digital bale counter, 4. Automatic chain lubrication (merged across Eco and Tech Plus) | 5. Double Pick-up |
| 21 | Hitching | CAT-2 three point linkage | ||
| 22 | Bale density | Adjustable | ||
