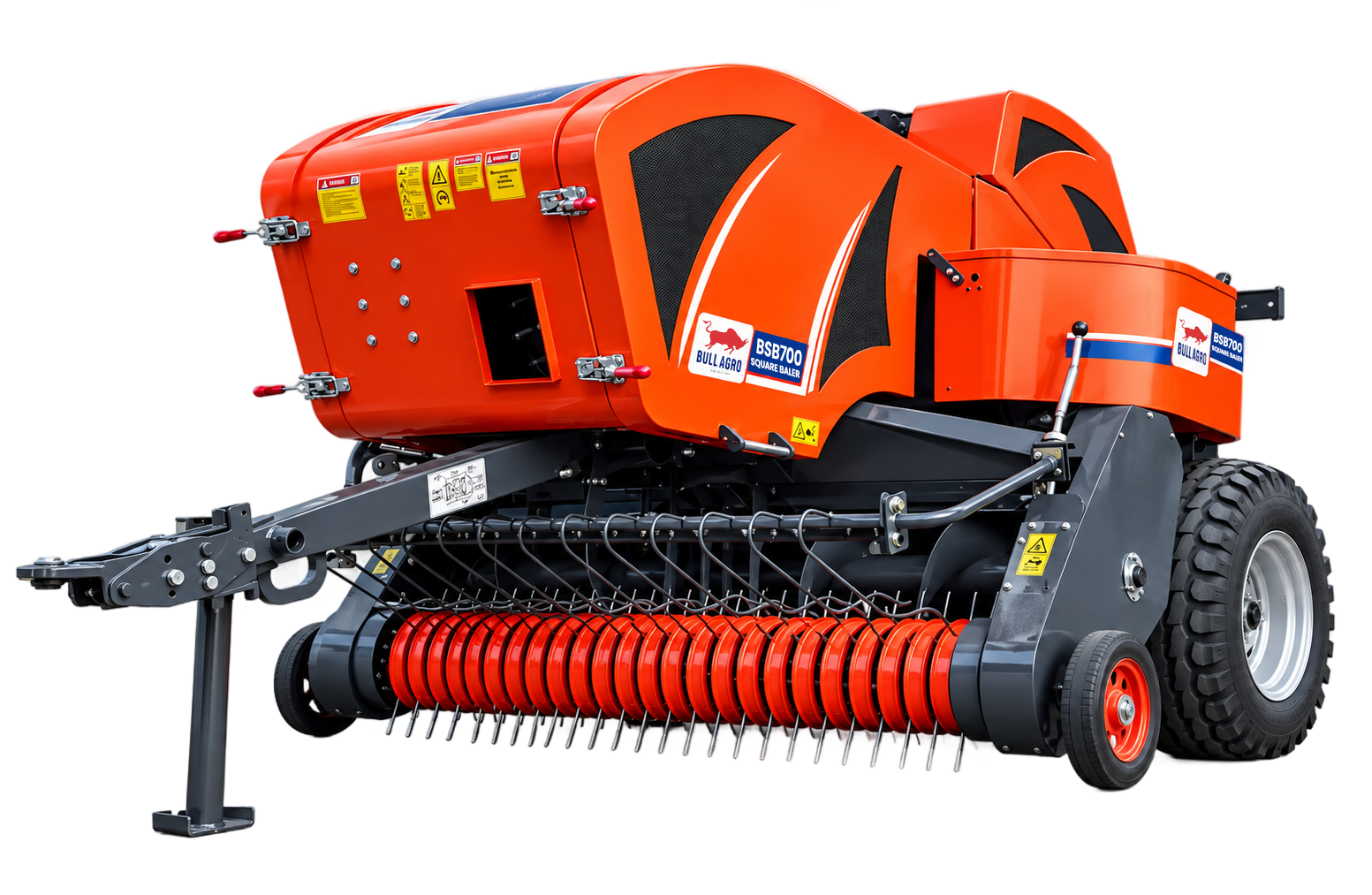

Square Baler BSB - 700
Square Baler BSB - 700
Effortless Baling.. Endless Yield.. Bale Better... Bale Smarter! The Compact, In-Line BULL AGRO Square Baler. The Future of Smart Baling. Boost productivity and simplify handling with the Bull Agro Square Baler. This efficient solution offers profit
- High bale density and binding via strengthened compression.
- Stable damping enhances knotting stability and efficiency.
- A heavy-duty gearbox drives all elements for perfect baling.
- Reliable, efficient knotting with heavy-duty German D-type Raspee knotter.
- Automatic lubrication every 20 minutes for enhanced reliability and time savings.
- A smart digital display provides bale counting and save options.
- The sturdy flywheel protects all parts from heavy loads.
- Optimized straw flow for even filing, less contamination and extended knife life.
- Improved pickup efficiency with smoother, faster, cleaner straw collection.
Technical Specifications & Dimension Chart
Category | Description | BSB-700 |
TRACTOR REQUIREMENTS | Tractor power | 50 & above |
Connection type with tractor | CAT-I Three point linkage | |
Traction mode | Mid-mounted | |
PTO speed | 540 | |
MACHINE SIZE & PARAMETERS | Overall dimension (L × W × H) | 4600 × 2340 × 1750 |
Weight | 1800 | |
Effective working width | 1700 | |
Bale chamber size (W × H) | 446 × 364 | |
Bale length | 500–1350 | |
PICKUP | Number of pickup tine bar | 4 Rows |
Number of tines | 48 | |
Pickup height adjustment | Mechanical | |
FEEDER | Number of stuffer finger | 4 |
PLUNGER | Piston speed (stroke/min) | 110 |
Stroke length | 550 | |
Number of bearings | 7 | |
TYING MECHANISM | Knotter number | 2 |
Knotting mechanism | Heavy-duty D-shape knotter | |
Twine box capacity | 10 | |
Twine type | Polypropylene (PP), Sisal | |
BALE SYSTEM | Bale damping mechanism | Double-sided |
Bale length control | Mechanical (adjustable) | |
Bale density control | Adjustable spring loading / mechatronic hydraulic integration (optional) | |
Bale count | Digital | |
SAFETY SYSTEM | Protection system | Slip clutch, safety shear bolts and safety guards |
TYRE | Transport tyre | Right / Left: 15-10 |
CLEANING SYSTEM | Knotter fan | Available |
LIGHTS | Working light | Available |
LUBRICATION | Lubrication system | Automatic oil lubrication |
Gear box | Heavy-duty vehicle gear oil – SAE 140 (85W140) | |
Grease lubrication | AP3 grease (manual) |
